Metrology and precision Encoder module
Discontinued Products are limited to existing inventory.

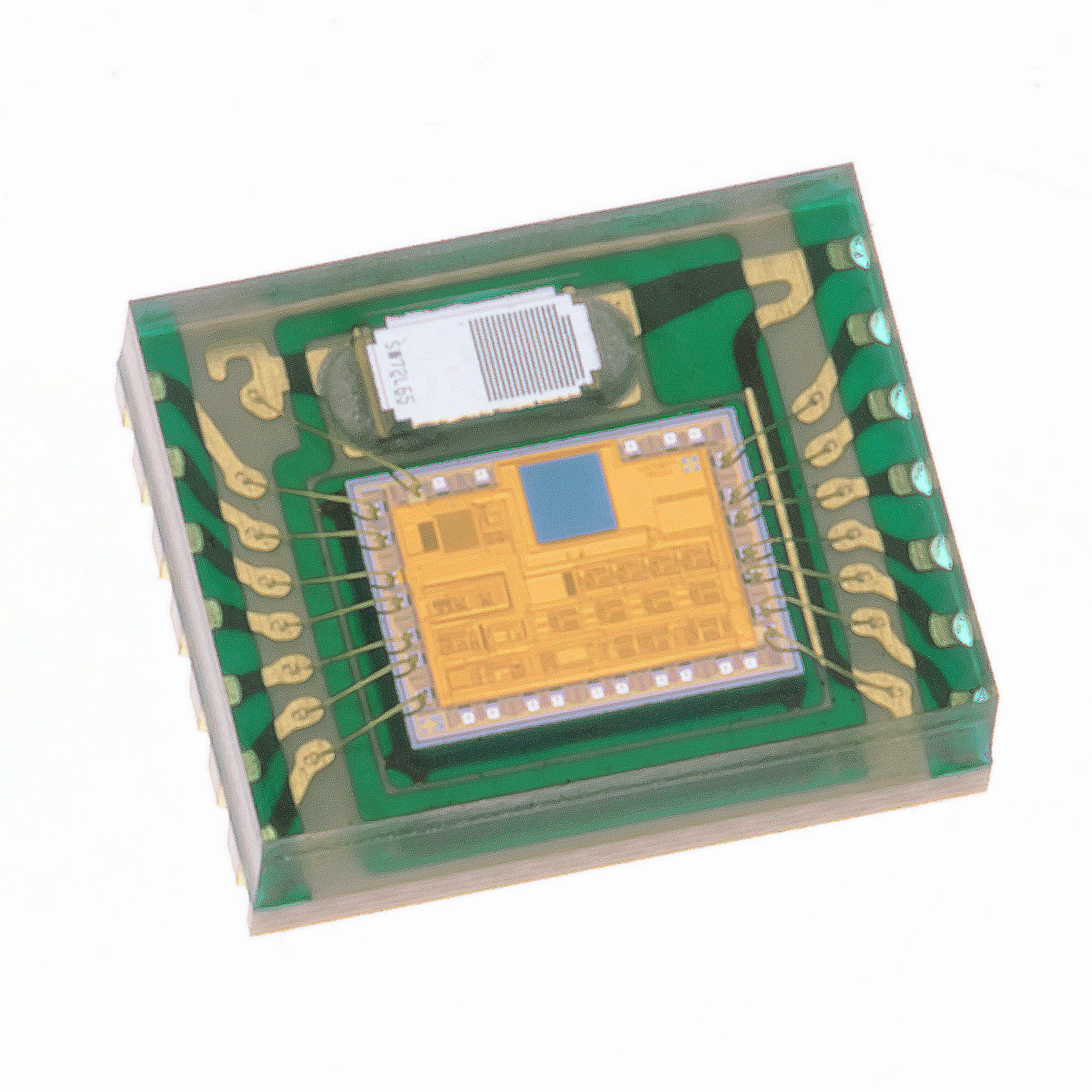

The SMD-04 is a miniature, reflective optical incremental encoder head with analog AB and Digital Z (index) outputs. SMD-04 use a 20µ period; combined with interpolation circuit nanometer to submicron resolution is achieved. And SMD-04 low-noise high-precision analog signals maximize accuracy.

A unique led receptor provide wider tolerance to misalignment, YAW, external contamination and humidity. This reduces assembly process workload required for a high-precision encoder, and simultaneously supports miniaturization and high accuracy requirements.

Key Features
  • Small and accurate encoders
  • Improved accuracy
  • Low assembly costs
  • Miniature package: 14-pin HCOB (5.3 × 4.3 × 1.68mm)
  • High-precision A/B-phase analog and Z (index) digital outputs
  • Output Gain Control function when using Index
  • Noise-resistant differential output support
  • Optimized OEIC and optics design for easy mounting alignment
  • Adjustable LED brightness using external inputs
  • Analog (sine wave) A,B output
  • Supply voltage range: 4.75 to 5.25V
  • Operating temperature range: -30 to +85°C
Typical Applications
  • Metrology, CMM
  • Laser optical axis control
  • Assembly machines
  • Laser optical axis control
  • Measuring instruments
  • High-precision rotary and linear encoders
  • Stages, Actuators
  • Robotics motion control

Limited to Inventory

Other Discontinued Encoders
Contact to confirm availability, pricing, and delivery.
ProductQty AvailableReplacement
