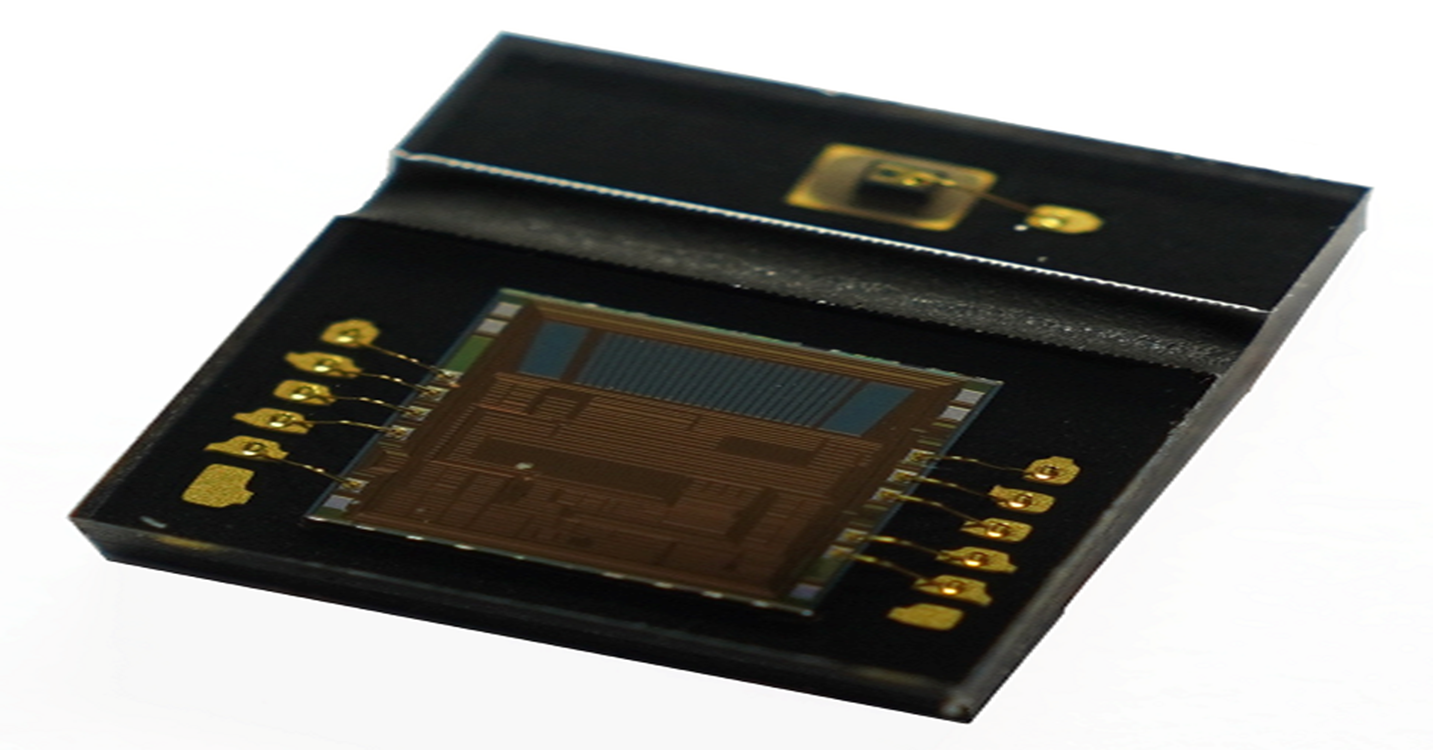

SME-08
3-Channel Encoder Module with Digital Output
Contact sales@vcamericaelectronics.com for Sample Requests, Pricing, and Delivery
- Low assembly costs
- Common Land Pattern & Pinout eliminates PCB redesign
- Compact clear molded package: (3.95 × 3.4 × 1.00mm)
- Built-in interpolation circuit
- 4.5V-5.5V operation
- LED Wavelength: 850nm
- Industrial Motion control
- Robotics
- Stages, Actuators
- Laser optical axis control
- Measuring instruments
- Precision rotary and linear encoders
SME-08 is a 80µm native encoder with built-in interpolation options.
A/B digital outputs & Z digital output(Index) with interpolation function(4x,8x&16x)
| Version | AB Output | Z Pulse Width [°e] | Interpolation |
|---|---|---|---|
 SME-08AS1 | Digital | 90 | 1x 60KHz 2x 120KHz 4x 240KHz |
| SME-08AS2 | 180 | ||
| SME-08AS3 | 360 (x1:430) | ||
| SME-08BD0 | Analog | 430 | N/A - 60KHz |
| SME-08BD1 | Digital | 90 | 4x 240KHz 8x 480KHz 16x 960KHz |
| SME-08BD2 | 180 | ||
| SME-08BD3 | 360 |
- Sample order and design kits available from stock
- Production orders ≥250 lead time 16-18 weeks
- Contact sales@vcamericaelectronics.com to confirm price and delivery
