SMD-04B

SMD-04B
Metrology and precision 3-channel Encoder module
Key Features
  • Accurate Encoder Performance
    • High resolution 20 µm track period
      • 1270 LPI (Lines per Inch) / 50 Lines per mm
      • Quadrature output is 5080 LPI / 200 Lines per mm
    • Low noise A/B analog and digital Z (index) outputs
      • Low distortion Lissajous curve reduces cyclical errors and improves interpolation repeatability and accuracy
    • Lower assembly & manufacturing costs
      • Proven reliability and long lifetime
      • Small footprint and 1.0mm package height fits within existing hardware
      • Optimized OEIC and optics design for easier mounting alignment
Typical Applications
  • Metrology, CMM
  • Laser optical axis control
  • Assembly machines
  • Measuring instruments
  • Precision rotary and linear encoders
  • Stages, Actuators
  • Robotics

The SMD-04B is a miniature, reflective optical incremental encoder head with 3-Channel outputs (2 analog A/B plus Digital Z index)

The SMD-04B is the building block for maximizing resolution and accuracy with interpolation.

Combined with a 20µ period scale there are 50 periods per mm/1270 periods per inch. Quadrature differential A& B outputs are 4x 200 counts per mm/ 5080 per inch.

SMD-04B low-noise high-precision analog output signals maximize accuracy and enables high bit ADC interpolation into picometer resolution.

A unique LED receptor provide wider tolerance to misalignment, YAW, external contamination and humidity.

Footprint is 5.4x4.3mm and package height 1.0mm with nominal 0.5mm gap to scale for overall height 1.5mm from PCB to scale.

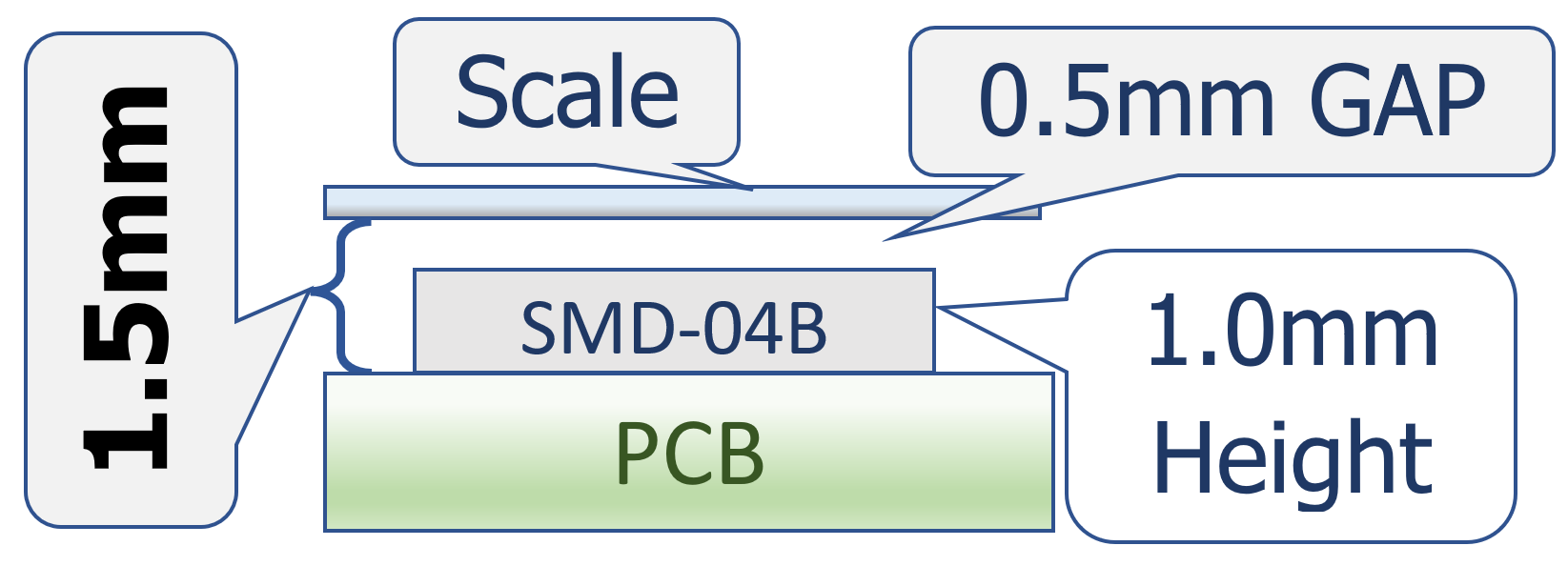

SMD-04B Gap Diagram
20µm Resolution and Interpolation
EncodingImperialMetric
LPI
(lines per inch)
ResolutionLPM
(lines per mm)
Resolution
×11270 LPI0.787 mils50 LPM20µm
Quadrature A-B
×4
5080 LPI0.197 mils200 LPM5µm
With external ADC
12-bit Interpolation
20,807,680 LPI0.0000481 mils819,200 LPM0.0012207µm
With external ADC
16-bit Interpolation
332,922,880 LPI0.00000300625 mils13,107,200 LPM0.07629375nm
  • Tolerance to YAW, Pitch and ROLL errors
  • Better production yields
  • Good tolerance to small particles and fingerprints
  • Excellent long-term reliability
  • Lower service and maintenance cost
Delivery
  • Sample order and design kits available from stock
  • Production orders ≥250 lead time 16-18 weeks
  • Contact sales@vcamericaelectronics.com to confirm price and delivery
