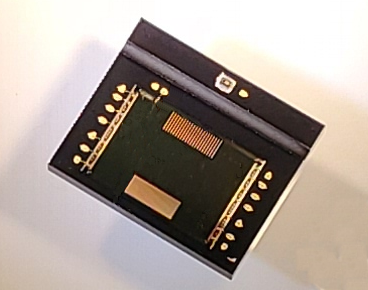

SM3414B
Laser Axis Control, Galvano Scanner, Metrology, and Absolute Encoder module
- Miniature package: HCOB 16-pin (5.3 × 4.3 × 1.00mm)
- Supply Voltage 2.7 to 3.3V
- Current consumption 6.5mA (Typ) @VDD=3V
- Operating Temperature range -20 to 85°C
- Serial interface
- Industrial Motion control
- Laser optical axis control
- Laser Marker
- Galvano Scanner
- 3D Metrology, CMM
- Rotary and linear encoders
- Stages, Actuators
- Robotics
The SM3414B is an optical reflective absolute linear encoder module. The scale absolute code pattern is read and outputted via serial interface. An analog incremental signal can also be used for higher resolution employing interpolation. The device incorporates adjustments for absolute code binarization, threshold voltage and incremental signal I/V conversion gain.
